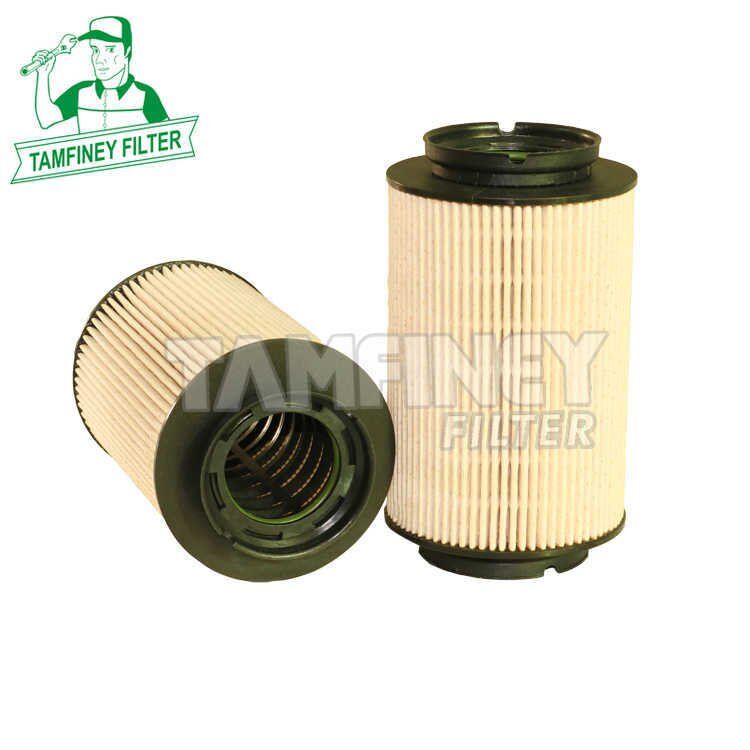

PU936/2X

Primary filters, sometimes called a pre filter are plumbed before the factory filter.

Fuel passes through this relatively coarse filter first before continuing on to the vehicle’s factory installed filter, then to the high pressure pump. The filter media in a primary filter is rated at 30 micron. A micron is a unit on length equal to one millionth of a metre, or to break this down further; one micron is one thousandth of a millimetre.

So, a 30 micron filter will remove particles the size of 30 x 1,000ths of a millimetre. This may sound very small, and it is, but not small enough to protect modern high pressure fuel systems from abrasive damage. Most factory filters on modern Common Rail systems are rated at 10 micron.

Weight178 g
Outsite Diameter

83 mm

Inside Diameter

39 mm

Height

142 mm

Application

VW

MOQ

100 PCS

Media

Fuel filter paper, Composite paper

Cross Reference For PU936/2X

BOSCH 1457431715, D750, F026402009, F026402750 1457070007, 1457431715, N0007,
FILTRON PE973
FRAM C9766ECO
HENGST E42KP01D107 E72KP01D107, E72KPD107 E72KP02D107
MAHLE KX178D KX178DECO
MANN PU 936/2 x, PU 936 x 1018766S01
MECAFILTER ELG5294
TECNOCAR N308
UFI 2600200, 2601400
WIX WF8308
CLEAN MG1610
VAG 1K0127177A, 1K0127434, 1K0127434A 1K0127400C 1K0127177
1K0127400B BALDWIN PF9872
AC Delco ACD8070E,
Alco MD-539, Coopers Fiaam FA5695ECO, FEM4187, Motaquip VFF470, Purflux C505, Unipart GFE5409 Wix WF8308 PE973
CLEAN FILTRI MG1610
WISMET WFU39743
CLEAN MG1610 KOLBENSCHMIDT 50013900
MAGNETI MARELLI 152071760672
MEYLE 1002010012  Alco MD-539,
Champion L448, Delphi Lucas CAV HDF547, Digoema DGM/K56331, Fil Filter MFE1445MB, MFE1445MBV, M Filter MP4412, Magneti Marelli 71760672, Purolator Facet F59225, F69092, Tecneco GS0308-E, Tecnocar N308, Sofima S6002NE, S6014NE,
SKODA 1KO 127 177
SKODA 1KO 127 4OO B
SKODA 1KO 127 434 B
SKODA 1KO 127 434 A
SKODA 1KO 127 434
SKODA 1KO 127 177 A
SKODA 1KO 127 4OO C
