LF3000
The full flow filter can’t catch small particle pollutants below 30 microns, so the oil will degrade and need to be discharged frequently. Part of the lubricating oil from the oil pump enters the main oil passage, part of it enters into bypass oil filter and flows back to the oil sump, bypassing the engine, so even if the filter element is blocked, the lubrication will not be affected.
| Weight | 1645 g |
|---|---|
| Outsite Diameter | 118 mm |
| Thread | 2 1/4-12 UNS-2B |
| Height | 302 mm |
| Application | Case, Hyundai, John deere, Doosan |
| MOQ | 100 PCS |
| Media | Glass fiber, Oil filter paper |
Cross Reference For LF3000
ATLAS COPCO-1310032243 ,2653161527 ,5580006641 ,9772040030 AWD-A4027536 ; BALDWIN-BD103 ,BD103SS ,BD7309 BOMAG-31701002 ,31780003 ; BOMBARDIER-921214022 ; BOSCH-REXROTH-0986AF0039 BUHLER VERSATILE-86029144 CASE 84465096 ,84485647 ,8900126397 ,007101T1 ,3621379M1 ,366700A1 ,441703A1 ,B2750548 CATERPILLAR-2266551 ,10027047 ,30003073 ,3I1265 CHINA LOCAL-JLX350A ,VO1801 ,VO1807 ; CUMMINS-3318853 ,3401544 ,3825970 ,TECXLF75000 ,XLF7000 ,XLF75000 ; DAEWOO-474-00023 ,2471-90148 ,65055105023 ; DAF-1288430 143115 DRESSER-1290006H1 ,1294153H91 ; DYNAPAC-902039 ; ENMTP CPG-5608835 ; ERF (E.R.F.)-1355360 ,1355361
AGCO CM3318853 711049 ,72501533
CASE CONSTRUCTION 90-7101T1
CUMMINS 3318853
CUMMINS 3825970
DAF 128 8430
E.R.F. 135536-0
E.R.F. 135536-1
FIAT-HITACHI 4228688
FIAT-HITACHI 71497005
FURUKAWA 1290006H1
HYUNDAI CONSTRUCTION 11E1-70130
J.C.BAMFORD 02/910550
JOHN DEERE RE44647
FLEETGUARD LF3000 ,LF3000TP ,LF3000X ,LF3639 ,LF3677 ,LF9009 ,XLF7000 FLXIBLE-97520500210 ; FORD-3318853 ,3825970 ,BG2X6731CA ,E8HZ6731A ,E9PJ6714AA ,F8HZ6731A ; FOTON-C3401544A0571A ,D1700240 KOMATSU 1295224-H1
KOMATSU 6742-01-4120 6742-01-2430
LIEBHERR 560 8835
MASSEY-FERGUSON 72 501 533
FLEETGUARD LF3000
FLEETGUARD LF3000TP
FLEETGUARD LF3677
HENGST H300W03 H300W07
MAHLE OC482 0C304
SOFIMA S 3411 R
UFI 23.411.00
LIUGONG-851011975 ,53C0053 MANITOWOC-4136530 ; MANN & HUMMEL-WP12121 ,WP12300 MASSEY FERGUSON-72501533 ,1077749M1 ; MCCORMICK-707154A1 NAVISTAR-1294153H1 NEW HOLLAND-9703112 ,75285999 ,8900130271 ,8962110113 ,441703A1 ,L441703A1 ,NP441703A1 ;
ONAN-1220828 ;
ORENSTEIN & KOPPEL-1487676 ,8482339 ; PARKER-PERI332 RACOR-RL332 DONALDSON P553000 P553639 SAKURA-C57061 ,C5707 ; SAMSUNG-3318853 ,11712405 ,991218853 ,9991218853 ,F318853 ; SANY-B222100000063 ; SDMO-330560035 SHANGHAI DIESEL-D1700240 ; SISU-1216 400541 ,1216 400561 ,1216 400591 ; STEIGER-907101T1 ; SULLAIR-88291001891 ; SURE FILTER-SFO3000 ; TATA-3401544 TEREX-15266844 ,15274299 ,B2750548 TORQUIP-75285999 VERSATILE-9703112 ,V9703112 VME-12969457 ,E12969457 ; VOLVO-54429 ,3130934 ,12969457 ,991218853 ,M12969457 ,V1113896 WHITE-303506517 ,303509517
EUCLID-E12969457 FIAT-71497005 ,75285999 ,76194691 FURUKAWA-1290006H1 ,1294153H91 ,3381644H1
HITACHI-4228688 ,4470720 ,42286881 ,71497005 ,76194691 ,E0A000080 ,L4228688 HYUNDAI-11E1-70130 ,11NA-70110 INGERSOLL RAND-22177737 ,35378546 ,53161527 ,57165763 ,57752990 JCB-2910550 ,2910550 ,2910965 ,2910965 ,02910550A ,2910550A ; JOHN DEERE-AT193242 ,RE44647 ; KAWASAKI-YE3318853 ,YELF3000 ; KOBELCO-YN50VU0001D5 ; KOMATSU-76817573 ,6742-01-2430 ,6742-01-4120 ,6742-01-4540 ,1294153H1 ,1294153H91 ,1295224H1 ,21M0111510 ,CU3318853 LEYLAND-DAF-C3318853 ;
YUTONG 1012-00146 24719014B 65.05510-5023B
HYUNDAI 31LH-60071
HYUNDAI YUBP-00302
VOLVO 14503824
VW 2T0115561
J.C.BAMFORD 02/910965
KING LONG 299006635
SOLARIS BUS 0120-390-054
VAN HOOL 11004620
WIRTGEN GROUP 195743
MAHLE OC 1176 Ammann 48300730162, 4-8300730162
Freightliner ABP/N10G-LF9009
CASE J401544
MANN WP12309
KINGLONG 299006635
AGCO 72516560 HYUNDAI 11E1-70130-PB
SANY B22210000063 CUMMINS 42030334,DONALDSON P559599, P559583, P559580
Similar Filters
| TAMFINEY NO. | OEM | OEM NO. | OD*H | Thread | Application |
| TMY-LS-1104 | KOBELCO YN50V0001D5 VOLVO 1113896 12969457 DONALDSON P553548 MANN FILTER WP12308 BALDWIN-BD324 CASE-CASE IH-44500129 ,44500596 ,84301243 ,86990980 ,87349575 87775070 ,J919562 84475543 ; CUMMINS-3919562 ,3973686 ; FLEETGUARD-LF3548 ,LF9548 ; FURUKAWA-1241160H1 KOMATSU-1295155H1 ,CULF3548 NEW HOLLAND-86990980 ,87349593 SAKURA-C7927 ; SURE FILTER-SFO3548 |
AGCO 72513286 CASE NEW HOLLAND 84229397 VAPORMATIC CPD5043 PUROLATOR L54851 LUBERFINER LFP2265 DONALDSON P551258 HIFI FILTER SO3548 MACK TRUCKS 5839-LF3548 SCHUPP SP4515 WOODGATE WGL3548 HIFI FILTER SO3548 FBN FO905150 WISMET WOS45323 VMC LF553548 WIX 51741XD DT S109421 |
119*237 | 2 1/4-12 | FLEETGUARD |

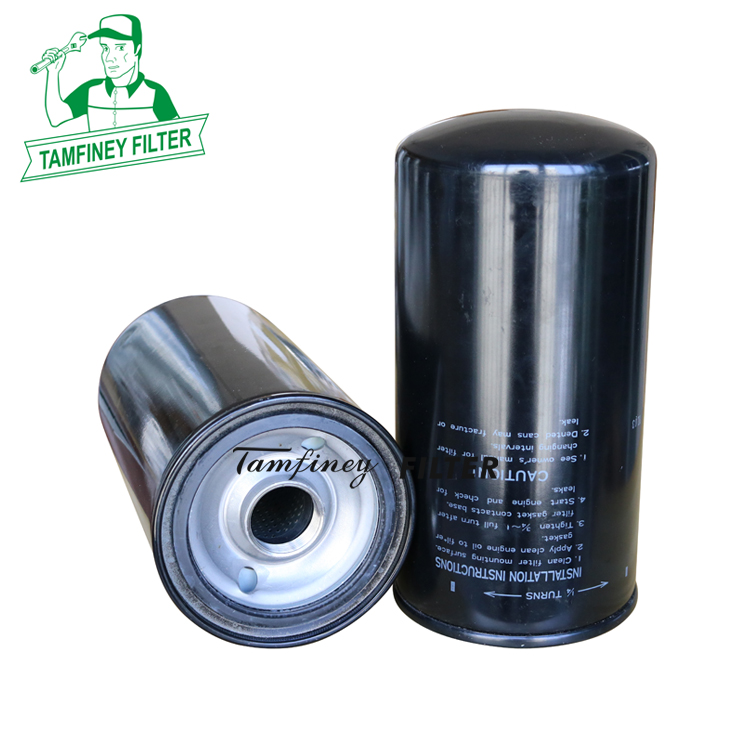

| TMY-LS-1105-1 | 37540-02100 37540-02100D 37540-02100E 37F40-02100 ME034879 SAKURA C-5201 |
116*249 | 1 3/8-16 UNS-2B | MITSUBISHI 同LF777 |
|
| TMY-LS-1105-2 | HINO 15607-1421 15607-1420 15607-1760 15607-1440 15613-EV100 15607-1790 15607-2040 1132400611 ISUZU 1-13240163-0 ISUZU 1-13240163-1 ISUZU 1-87811639-0 ISUZU 1-132400112-0 ISUZU 1-13240042-0 ISUZU 1-13240042-1 ISUZU 1-13240131-0 ISUZU 1-87811639-2 ISUZU 1-13240066-0 ISUZU 1-13240162-1 ISUZU 1-13240163-2 ISUZU 1-13240103-0 |
ISUZU 1132401583 1873100930 1873101320 1878116392 2906548300 1132400670 1132402090 132401631 HITACHI 4175913 ,4204048 ,4283860 ,4285964 ,4371313 ,4379562 ,4380540 ,4429727 ,4448735 ,4470167 ,4656585 ,41759131 ,42040481 ,42838601 ,42859641 4713921 4713982 KS350-7 KS350-7N |
118*260 | 1 3/8-16 UNS-2B | HITACHI (同LF777) |
| TMY-LS-1105 | KOMATSU 600-212-1510 600-212-1511 L3542PP CU3304232 CULF777 VS7035 CUMMINS 3309637 330432 3313283 3304232 3313284 3313289 3889311 3021658 3308616 3303242,C3313283 ,S45619265 DRESSER-1212621H1 ,572498C1 FORD E3HZ-6731-A E3HZ6731A 57124 E2HS6N602AA E3HZ6731A E4HS6714AA SFD901158T FLEETGUARD LF777 LF3542 LF3635 LF3326 ,LF3410 ,LF3545 ,LF3589 DONALDSON P550425 P550777 P172510 P779177 P779206 GM 25011187 25011188 2054371 15587320 25011551 94048385 2054371 94056207 8940483850 BOSCH 9455081021 MASSEY-FEGUSON 1055914M2 771308M1 771308M2 SISU 1216400531 836340713 DAEWOO 47400022 M.A.N. 55505504007 FIAT-ALLIS 61259040 73124135 74322701 ABC BUS 631301350 |
FIAT 71456513 71457590 76555533 76590121 76604059 76605215 71455205 76502368 73124135 DAF C3313283 WILSON 901118 GROVE 9414100817 FODEN Y08552602 Y03426604 Y03422604 LANSING-LIMDE E780113238 ALLIS-CHALMERS-4322701 ,4327701 ,73124135 ,74322701 DETROIT DIESEL-23518672 ,23530413 ERF (E.R.F.)-1356344 ,C3304232 ; EUCLID-119962280 FAUN-746870 ,746870 INGERSOLL RAND-35357250 ,56985963 ,92048933 LIUGONG 53C0499 |
118*260 | 1 3/8-16 | FLEETGUARD |
| AGCO AG133017 CATERPILLAR 1W-8845 9Y-4524 7C-4228 3I-1206 9Y4468 9Y4524 7C4228 1W4845 1W8845 2266554 ,2296554 JOHN DEERE AR98330 RE21748 RE42051 AT280318 AR21748 ,RE2051 ,RE21478 LIEBHERR 560 4365 ORENSTEIN + KOPPEL (O&K) 140 8923 103876 ,1408923 ,1448076 BALDWIN B7577 B7685 B7575 B7577B MAHLE OC 282 MANN FILTER WP1270 WP1290 WP1295 W12250 WP1290 UFI 23.410.00 DEMAG 76844173 692306 SAMSUNG 991213283 JCB 2800003 2800227 2800960 32919502 32/919502 32925322 32/925322 CASE 288870A1 288881A1 288922A1 289181A1 87418218 3621381M1 572498C1 901158T1 |
HENGST H200WN H240W01 VOLVO 27872 3131750 471392 ,963023 ,3130924 ,4713921 ,11996228 ,12978467 ,40412306 ,60477556 ,129694576 ,991213283 ,M0963023 DRESSTA 1212621H1 TEREX 103876 ,1408923 ,15267514 ,B1350561 BOMAG 31780104 ECLUID E12978467 NEW HOLLAND 901158T1 86546626 84160428 86987694 V57124 700703332 ,83MF6N062AA ,E2HS6N602AA ,E2HS6N6032AA ,E3HZ6731A ,SFD901158T CLARK 963023 3889311 2365955 M0963023 FIAT 71455205 74322701 76590121 CLARK-963023 ,963023 ,2365955 ,4076282 ,M0963023 2365955 1212621H1 ,1239944H1 ,1666053C1 ,572498C1 |
FLXIBLE-97342400182 ,97520500167 P & H-1046Z587 PARKER-PER250 PURFLUX-LS842 RENAULT VI-5000682148 ,5000812484 SAKURA-C-13061 ,C-1327 ,C-57022 ,C-57023 ,C-57025 ,C-5717 ,C-5718 ,C-5720 C-57021 SANDVIK-69008933 ; SDMO-330560069 SISU-836340713 ,1216400531 STEIGER-501158T1 ,901158T1 ,901158TI ; SUMITOMO-KRH1254 TAYLOR-4026977 TEREX- THERMO KING-3010184 ; VME-4713921 ,119962280 WABCO-VS7035 WHITE-172015777 YALE-6960390 |
