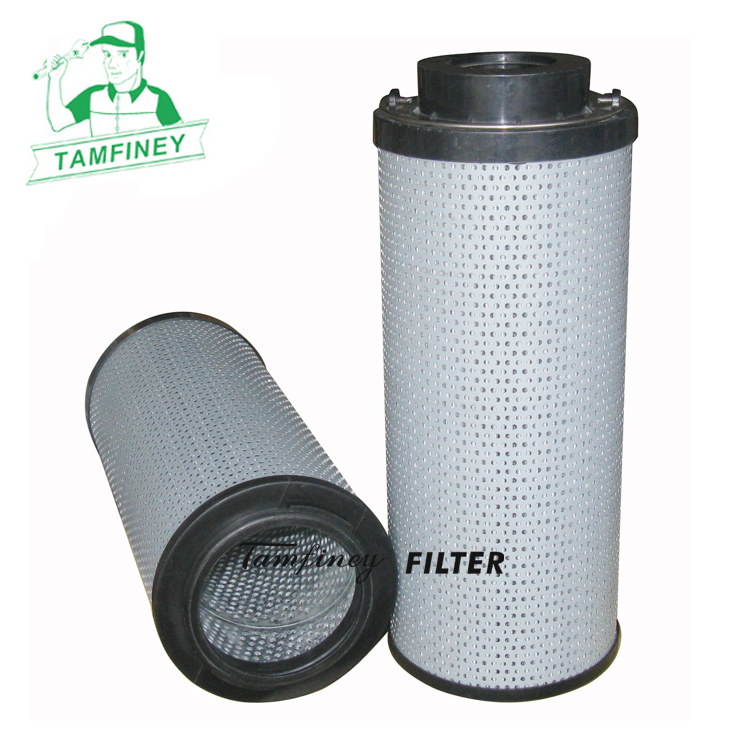

53C0055

Fine filtration is achieved by using return line hydraulic filters or even higher grades of filtration can be achieved by using a bypass filtration system. With dimensioning of return line hydraulic filters one should take into account the maximum possible hydraulic system flow. Especially when hydraulic differential cylinders are amongst the actuators, the oil return flow can be much higher compared to the maximum capacity of the hydraulic pumps used in the system.

Weight2417 g
Outsite Diameter

143 mm

Inside Diameter

97 mm

Height

330 mm

Application

Liugong, Parker

MOQ

20 PCS

Media

Glass Fiber, Hydrualic filter paper

Cross Reference For 53C0055

53C0055 HYDAC/HYCON 02059108
SANDERSON RE250G10B
BOSCH-REXROTH 30TR950H10LLLA
DONALDSON DT0950R14UM
FILTREC RHR950G10B
FILTREC RHR950G10V
FLEETGUARD HF6854
YUCHAI YLXB-46
STAUFF RE250G10B
TRIBOGUARD 950R010N
MAIN FILTER RHR950G10B
DONALDSON P170891, P566995, P 17-0891, P 56-6995
WIX R53D10GV
HYDAC/HYCON 0950R010BNHC
HYDAC/HYCON 0950R010BN3HC
HYDAC/HYCON 0950R010BN4HC
HYDAC/HYCON 950R010BN3HC
HY PRO HP95RNL1412MB
HY PRO HP95RNL1412MV
PARKER 938299Q  BALDWIN PT9500-MPG
HYDAC/HYCON 02059108
INTERNORMEN 20950R10VG30HCSP
EPPENSTEINER 30TR950H10LLLA
INTERNORMEN 310575
PALFINGER EA1059
WOODGATE WGHH95010RB
PALFINGER EA1059
PALL HC2295FKS14H
PALL HC2296FKS14H
PALL HC2296FKS14Z
SCHROEDER SBF0950RZ10B
SCHROEDER SBF0950RZ10V
STAUFF RE250G10B
TRIBOGUARD 950R010N
WESTERN FILTER ER0952B4C10
