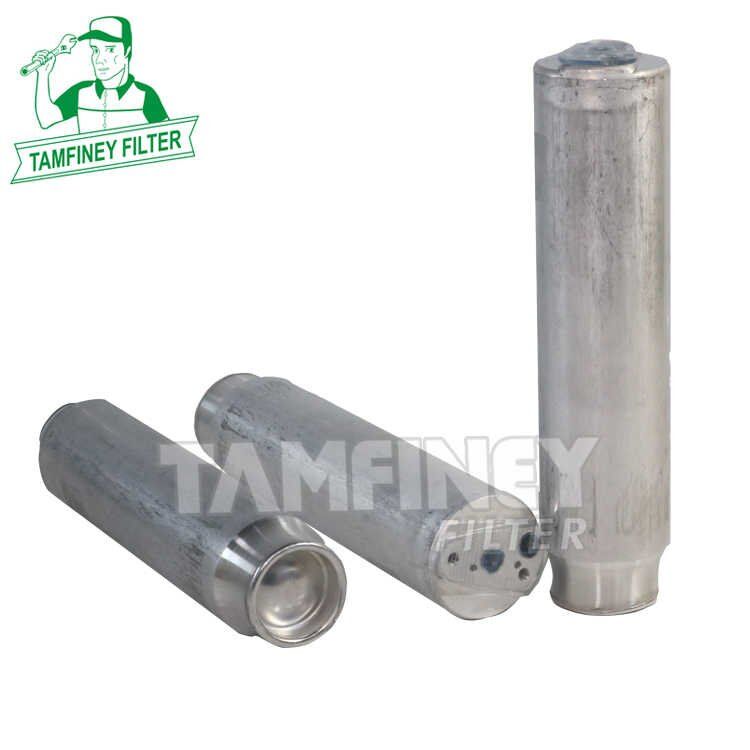

20Y-979-3120

The receiver dryer is a filtering unit located on the high-pressure side of the AC loop between the condenser and the expansion valve. The role of the receiver is to filter particles and debris flowing in the circuit as well as to absorb any moisture. Furthermore, it also stores oil and refrigerant.

Weight 517 g
Outsite Diameter

60 mm

Height

264 mm

Application

Komatsu

MOQ

20 PCS

Media

Full adhesive paper, Composite paper

Cross Reference For 20Y-979-3120

KOBELCO YT54S00002P1,
KOMATSU 20Y-979-3120, CAT 176-1902, 825-3000, 800-1354, 800-1366, T0070-79270, 37-18035, 74R5079, 07-5054A, 07-5057A, 73-2557, AT215511, 37-14321, ND447810-0070, 805-692, 127654, RD-5-14083-0P, PTAC7546, PTAC7568, PTAC7615, TRUCK AIR 07-5082A

Similar Filters

Description G.W. TMY NO. OEM NO. OD*H APPLICATION

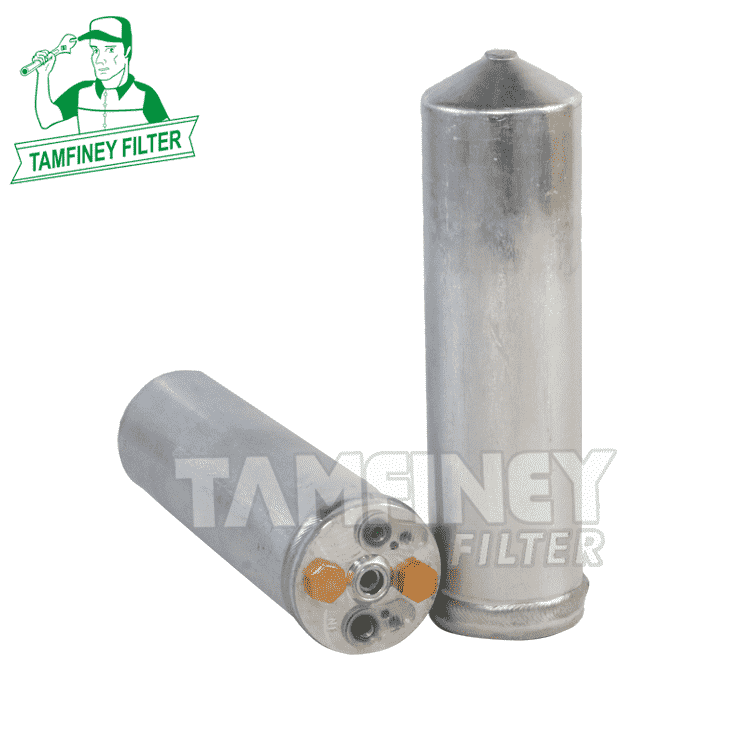

RECEIVER-DRYER FILTER 437g TMY-A-0602 CATERPILLAR : 2298997, 229-8997
HITACHI : 4646799 4448179
KOMATSU : 4230931571, 22B9791650, 22B-979-1650, 423-09-31571, 4230731571, 423-07-31571
60*227 KOMATSU

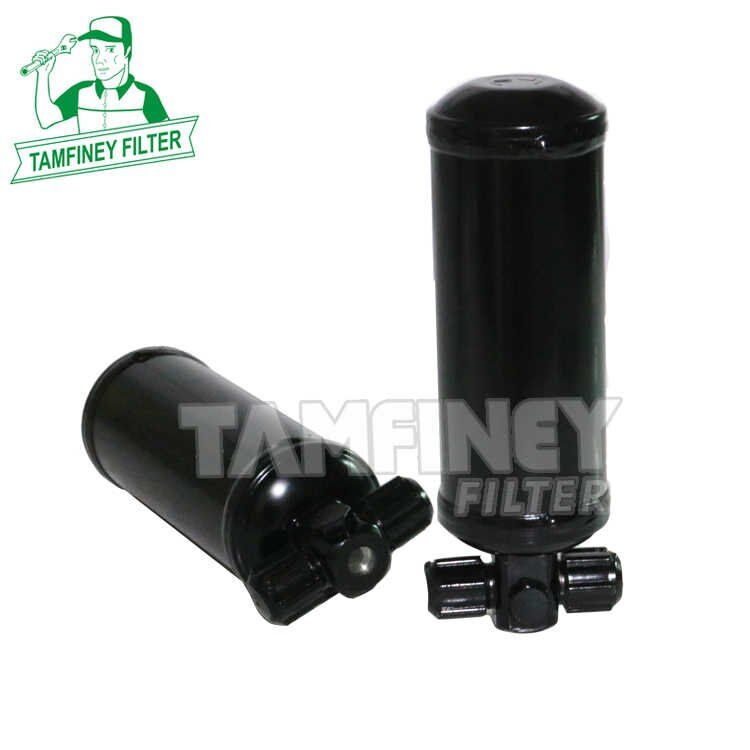

RECEIVER-DRYER FILTER TMY-A-0603 Doosan 300720-00003  2204-6039A 61*200 Doosan
