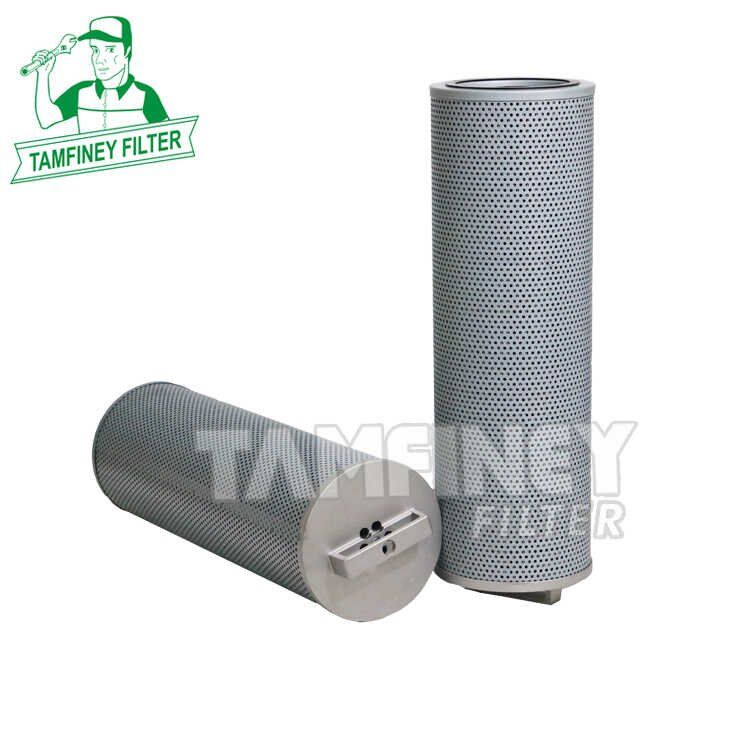

803182167 803194476 803308664

The oil in the hydraulic system enters the filter from the inlet, passes through the zigzag surface of the filter element, the impurities in the oil are adsorbed on the surface of the filter material, the clean liquid is immersed in the filter element, flows out from the outlet, and the clean liquid flows into the system. Such circulation ensures the cleanliness of the hydraulic system. Bypass valves open when backpressure reaches a predetermined level. The backpressure is created as the element becomes clogged with particles. As the bypass valve opens, fluid sidesteps the element itself, flowing around it to avoid excessive and damaging backpressure, especially in return lines. Suction and return filters are sized appropriately to handle the maximum flow possible with reasonably low backpressure. larger filter have higher dirt holding capacity.

Weight3800 g
Outsite Diameter

172 mm

ID

111 mm

Height

505/536 mm

Application

XCMG

MOQ

12 SETS

Media

Glass Fiber

Cross Reference For 803182167 803194476 803308664

Hydraulic element
Return
3800gTMY-HC-1705803308664 EF-466-100 D802.374.02
D802.374.03
172*111*505/536
HYDRAULIC ELEMENT NET
Strainless steel
1266gTMY-HC-1808803194476 EF-290D-100180*82*209
HYDRAULIC ELEMENT PILOT
BRAKE PIPING
TMY-HC-0514803182167 FE040FD1 6002958853*20*125
