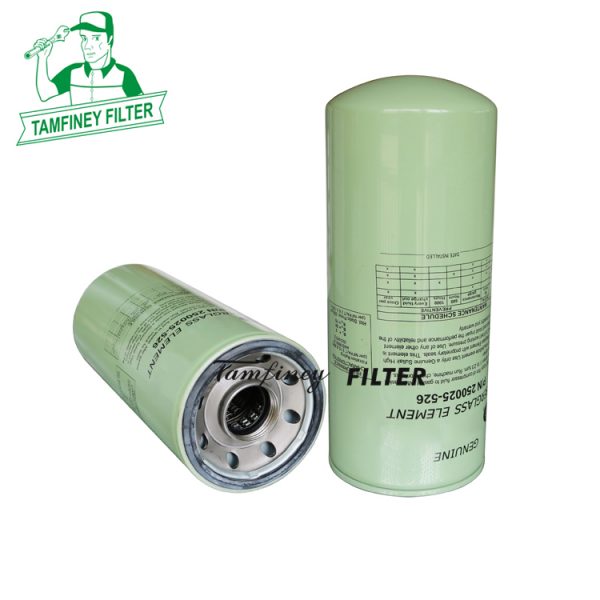

250025-525
Spin-on air compressor oil filter is a can with openings on one side. Inside the filter is a paper filter element which is folded like a harmonica to create the biggest possible surface area (so that maximum oil can flow through). There is also one pleated paper element inside the enclosure. Although it is looks like auto oil filter, but the inside material is thicker and better.
| Weight | 1950 g |
|---|---|
| Outsite Diameter | 118 mm |
| Thread | 1 1/4-11 BSP |
| Height | 160 mm |
| Painting | Green |
| Application | Sullair |
| MOQ | 100 PCS |
| Media | Oil filter paper,Glass fiber |
Cross Reference For 250025-525
FAI CS10000AD25A, CS-100-0-0-AD25-A, CS10000P10A, CS-100-0-0-P10A,
Mann 6760359110, W1226, Noitech NO016580, Standard SH8165, Sullair 250025-525 250018-019
BALDWIN-BT611 ,BT611-MPG FLEETGUARD-HF35008 HF6821 FRAM-P7061 QUINCY 12838205 ,128382-050 142136 ;
VMC-HF176324 DONALDSON J8630525 P176324 P171613
Mattei Ca21132179 Sotras
SH8165 Atlas Copco 2255300224 KELTEC 950-009
HASTINGS LF476 SCHUPP SF SPH18060 STAUFF SFC5710AE
UCC MXR9550 FBO CA16002
EPE 7SL90H10 7SL90K10
8090H10SL000
8090H10SLS000
8090H10XLS000M
87SL90H10LLP
RAVO R5060061 R5060073
DOMANGE FD34A10
IKRON HEK4530155ASFG10
HHC01813
WISMET WHS46267
SOFIMA CA301FD1 ESE21NFC
UFI 8002100
BOSCH R928016614
MP-FILTRI CS100A10 CS100A10A
PARKER 926503 VOLVO 900511
INTERNORMEN 31055010VG
Similar Filters
| Description | weight | TMY no. | OEM | OEM | OD*H | Thread | Application |
| Compressor OIL FILTER | TMY-HS-1106 | SULLAIR 250025-526 68562224 DONALDSON P176325 J8630526 FLEETGUARD HF6822 BALDWIN BT610-MPG BT610 FAI CS-170-0-0-AD25-A QUINCY 128383-050; 142243 KELTEC TECHNOLAB-KL1000014 ; LONKING-CA303EFD1 ; LUBER FINER-LFH8297 ; MANN 6760759150 ,W1268/1 PUROLATOR-H55312 ; SCHUPP SF SPH9719 ; SOFIMA-CA303EFD1 VMC-HF176325 ; WOODGATE-WGH1894 |
HIFI SH53040 SH70002 Sotras SH8164, Standard NO016480 Atlas Copco 2255300227 WISMET WHS46131 LUBERFINER 1623280 CT70319 |
118*286 | 1 1/4-11 BSP | Sullair |
| AIR COMPRESSOR OIL | TMY-HS-1306 | KOBELCO C-SP10-10 C-SP10-30 2446U146S3 KUBOTA 62271-62210 72271-62210 68271-62210 68773-62230 LR001-E2170 DONALDSON P502382 BALDWIN-BT8906 ,BT8927 ; DAEWOO-56203400 ; FLEETGUARD-HF7935 ; FURUKAWA-56203400 ; HITACHI-4205684 4318737 ; KOMATSU 103-60-23240 ,113-60-33130 ,113-60-43130 ,113-60-43320 ,113-60-43321 ,209-60-76210 SAKURA-HC-2702 ,HC-5602 ; SAMSUNG-104207040 VOLVO-14524171 ,104207040 14532688 |
WIX A24A10E HIFI SH60010 SH60030 LUBER-FINER LFH5941 SCHUPP SF SPH9610 SPH9911 SURE SFH1010 SFH3321 Kentek HK33386 SHIBAURA 75514203 075514203 YAMASHIN Y2367 YSKCSP1010 DOOSAN K9009935 471-000034 IMER 1218075514203 YANMAR KOM562-03400 DIGOEMA DGMH1010 IHI 007314288100Y WISMET WHS46103 AMC KO1546 KOBELCO P-CE13-506 P-CE13-520 P-F13-3003-3 |
134*174 | M48 x 2 | VOLVO |
